Y750s

YunSDR Y750s

Frequency range : 1 MHz–6 GHz ； 4-channel real-time transceiver: 400MHz bandwidth, single channel up to 1GHz ；100G high-speed interface, PCIe 3.0 card, abundant FPGA resources ； Ready-to-use toolkit for RF acquisition, recording & playback ； Rich cross-platform APIs: MATLAB, Python, C#, C/C++ ； Integrated GNU Radio, supports open-source 4G/5G protocol stacks

document

400MHz bandwidth SDR

In stock:

contact

＞1, ready to ship in 2 workdays

ꁆ ꁇ

.

Home ꄲ Products ꄲ Y750s

Overview
Product Information
Documentations
Related Products

Overview

Applications

· Wireless access

· Test and measurement

· Early warning/radar

· Cable TV access

· Other high-performance RF applications

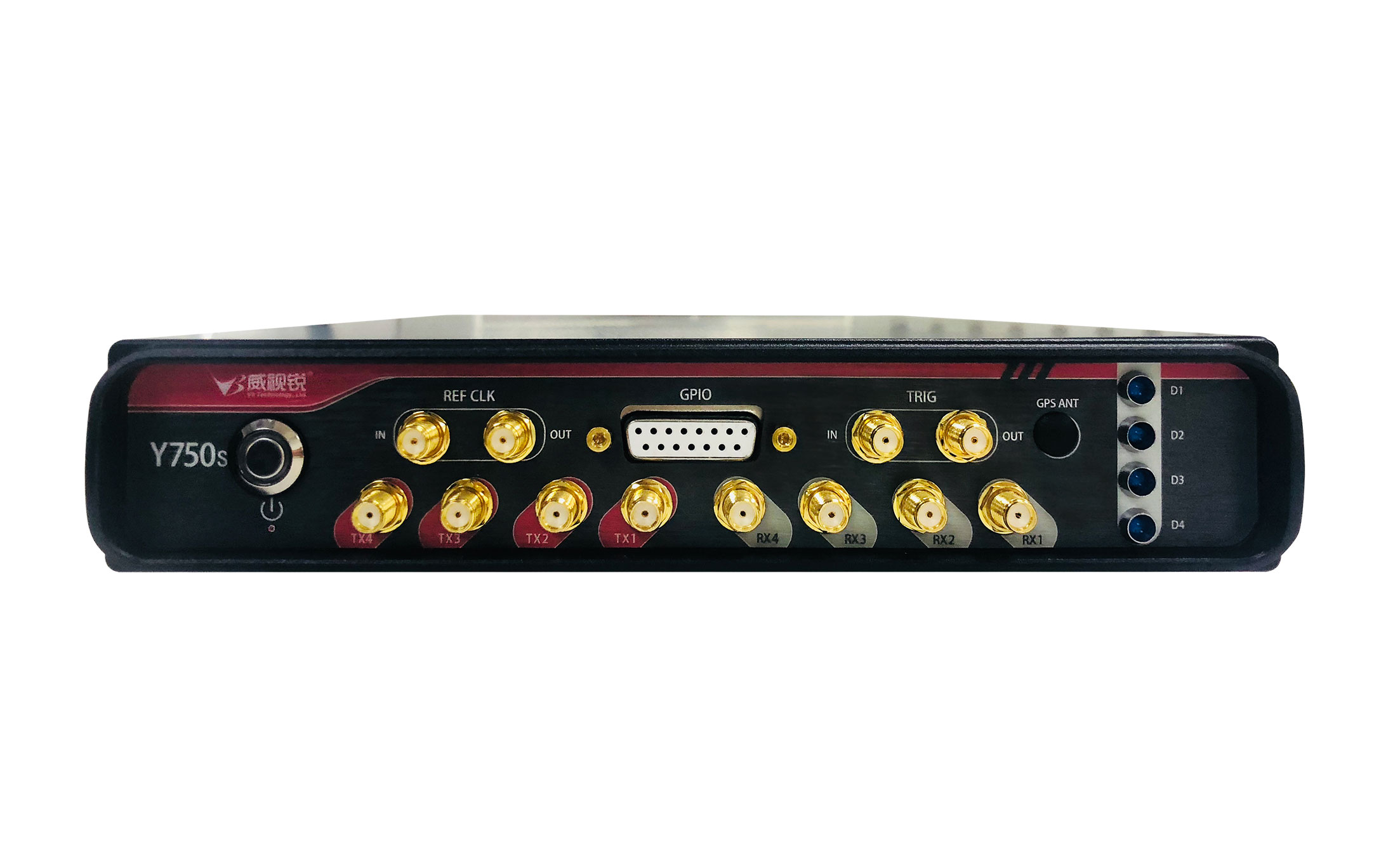

YunSDR Y750s is a high-performance multi-channel SDR platform based on Xilinx Zynq UltraScale+ RFSoC. It supports 1MHz–6GHz frequency, up to 2GHz instantaneous bandwidth, 4 independent TR channels (400MHz per channel or 1GHz single-channel IQ mode). ADC up to 5GSPS@14bit, DAC up to 9.85GSPS@14bit. Equipped with 100G optical interface and PCIe 3.0 x16 FPGA card. Standard interfaces include USB-JTAG, Gigabit Ethernet, TF card, USB 3.0, with configurable boot modes and 12V DC power.

Product Description

Main features and interfaces

· High performance, channel density, and high integration

· Two development modes: standalone mode (embedded) or host mode (100G to PCIe streaming mode)

· 1 MHz to 6GHz frequency range (expandable to millimeter wave frequency band)

· Maximum 1GHz instantaneous bandwidth or four channel 400MHz mode

· 4-channel transmission, 4-channel reception

· Xilinx Zynq-Ultrascale+ ZU47DR RFSoC

· 14 bit ADC, 14 bit DAC

· The IQ sampling clock can reach up to 1GSPS, while supporting 983.04MSPS and 960MSPS

· Four core ARM Cortex-A53 processor, with a maximum clock speed of 1.2 GHz

· Four core ARM Cortex-A5 MPCore processor, with a maximum clock speed of 500 MHz

· QSFP28 optical port (supporting 40G/100G Aurora and custom protocols)

· SFP+ optical port (supporting 1G/10G Ethernet)

· Provide PCIe fronthaul acceleration card, PCIe Gen3 x 16 interface, Xilinx Kintex Ultra Scale+KU15P FPGA, 2 QSFP28 optical ports

· Gigabit Ethernet RJ45

· Reference clock input/output

· Trigger signal input/output

· Built-in GPS module

· FPGA GPIO interface

· USB 3.0 Host/Device Interface

· Type C USB port serial console, JTAG)

The out-of-the-box software supports self-test, spectrum analysis, and signal record/playback, enabling quick troubleshooting. Compatible with GNU Radio and FPGA development, it allows rapid prototyping and reliable deployment for 5G base stations, signal intelligence, and spectrum monitoring.
