YunSDR Y750neo

Frequency range : 1 MHz – 8 GHz ； 4-channel real-time transceiver bandwidth: 400 MHz ； Dual 100G data interface, PCIe 3.0 card, abundant FPGA logic resources ； Ready-to-use toolkit for RF acquisition, recording & playback ； Rich cross-platform APIs for MATLAB, Python, C#, C/C++ ； Integrated GNU Radio, supports open-source 4G/5G protocol stacks

document

400MHz bandwidth, sub‑8GHz full band, 4x4 MIMO SDR

In stock:

contact

＞1, ready to ship in 2 workdays

ꁆ ꁇ

.

Home ꄲ Products ꄲ Y750neo

Overview
Product Information
Documentations
Related Products

Overview

Applications

· Wireless access

· Test and measurement

· Early warning/radar

· Cable TV access

· Other high-performance RF applications

YunSDR Y750Neo is the latest flagship of the 7 series, targeting 5G and WiFi7 7.2GHz bands. Built with a high-performance RF front-end and Xilinx Zynq UltraScale+ RFSoC, it supports next-generation wireless communication development.This multi-channel SDR operates at 1MHz–8GHz with 4 independent TR channels and up to 400MHz instantaneous bandwidth. It features 14-bit 5GSPS ADC and 14-bit 9.85GSPS DAC. Equipped with 100G optical interface and PCIe 3.0x16 FPGA card, it also includes USB-JTAG, Gigabit Ethernet, TF card, USB 3.0, configurable boot modes, and 12V DC power.

Product Description

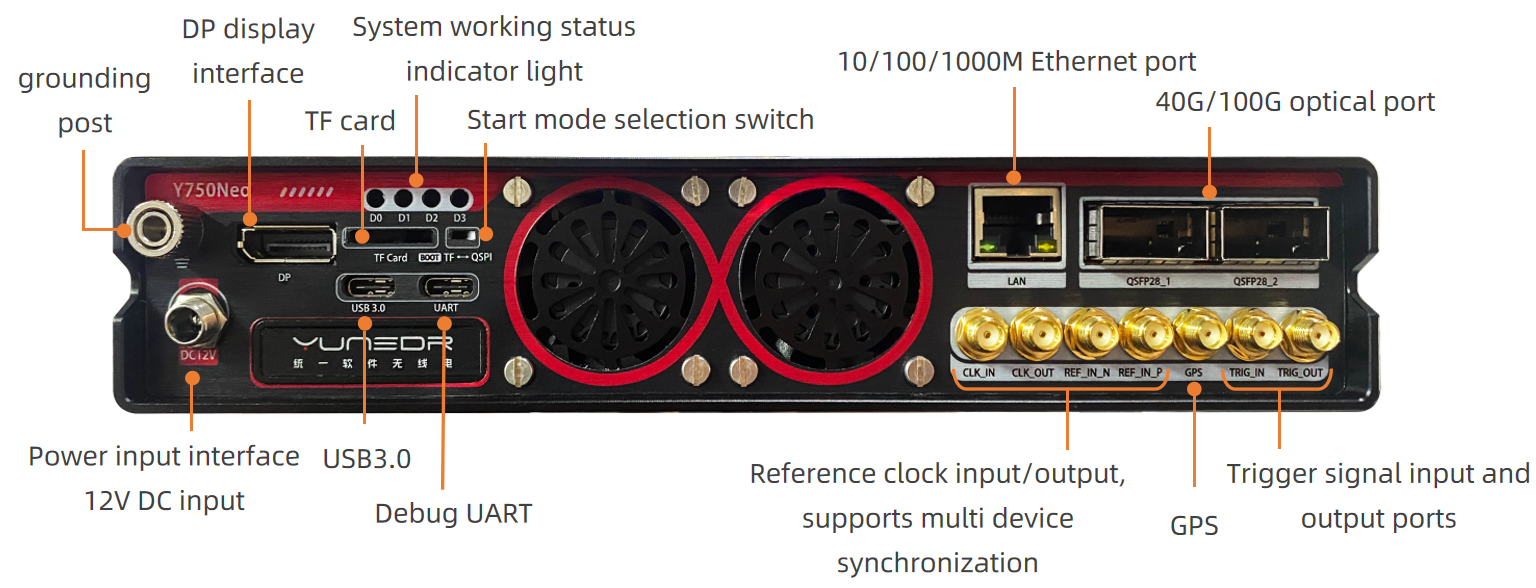

Main features and interfaces

· High performance, channel density, and high integration

· Two development modes: standalone mode (embedded) or host mode (100G to PCIe streaming mode)

· 1 MHz to 8GHz frequency range (expandable to millimeter wave frequency band)

· Real time bandwidth 400MHz mode

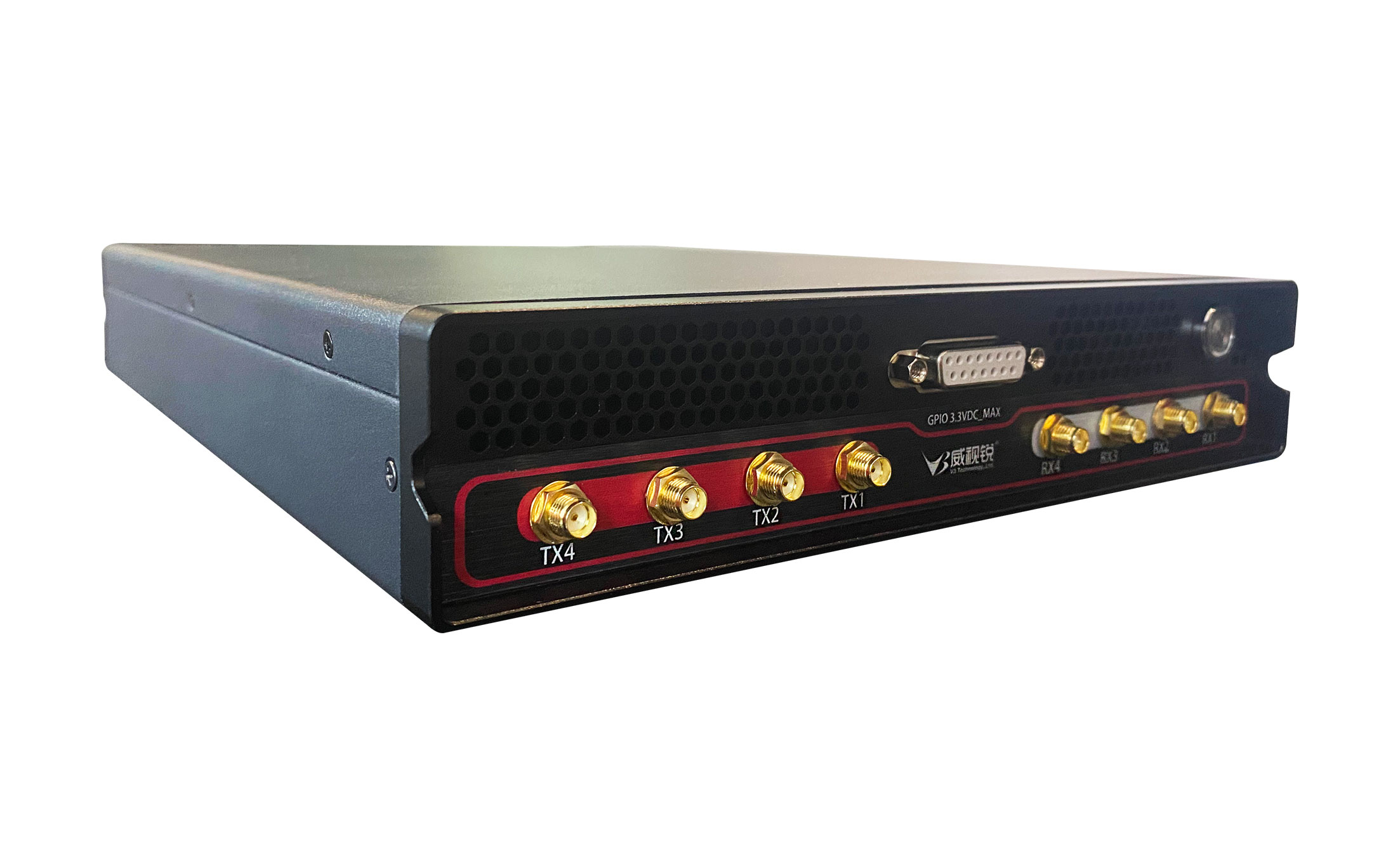

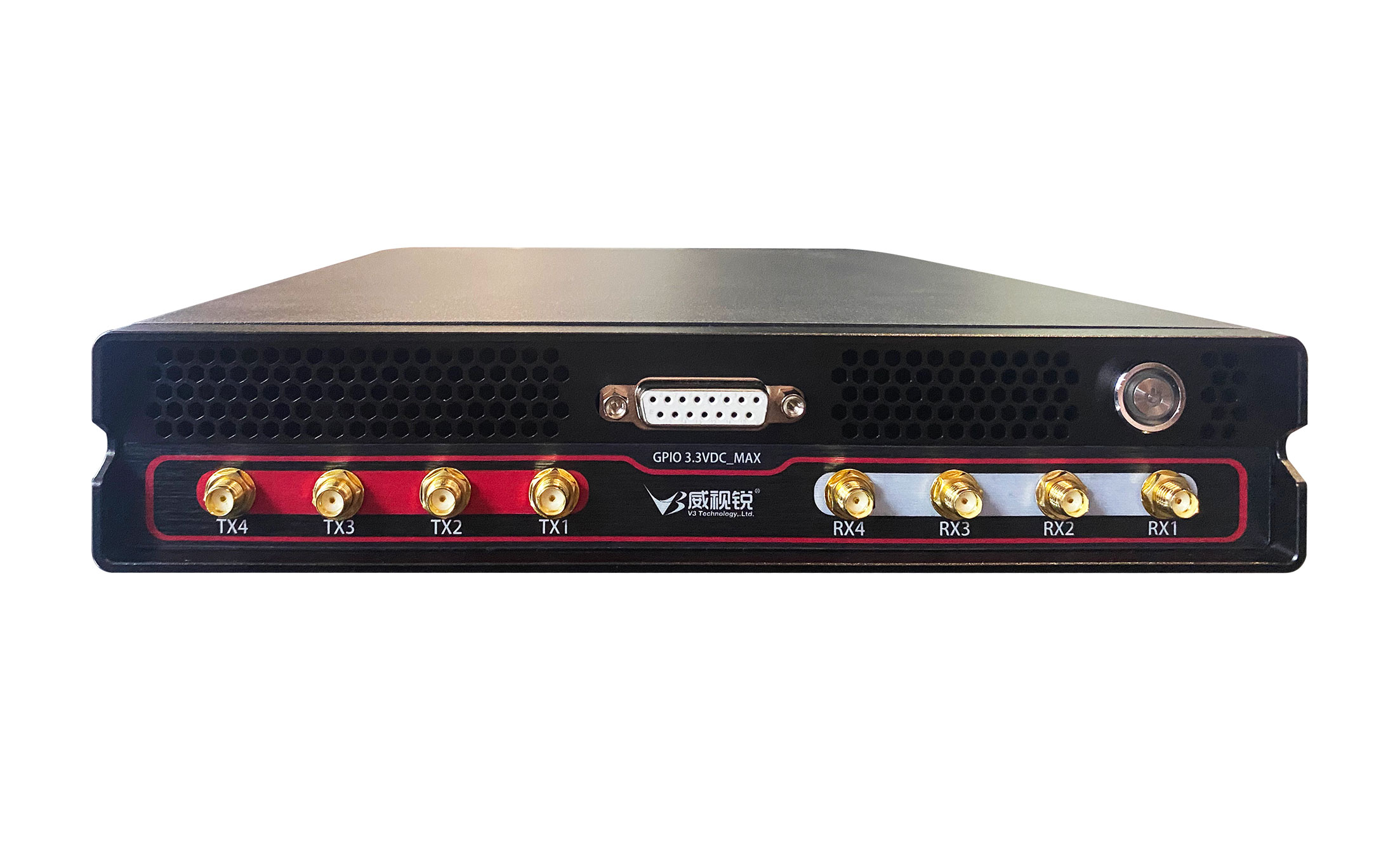

· 4-channel transmission, 4-channel reception

· Xilinx Zynq-Ultrascale+ ZU47DR RFSoC

· 14 bit ADC, 14 bit DAC

· IQ sampling clock 500MSP, supporting 983.04MSPS and 960MSPS simultaneously

· Four core ARM Cortex-A53 processor, with a maximum clock speed of 1.2 GHz

· Four core ARM Cortex-A5 MPCore processor, with a maximum clock speed of 400 MHz

· 2 x QSFP28 optical ports (supporting 40G/100G Aurora and custom protocols)

· Provide PCIe fronthaul acceleration card, PCIe Gen3 x 16 interface, Xilinx Kintex Ultra Scale+KU15P FPGA, 2 QSFP28 optical ports

· Gigabit Ethernet RJ45

· Reference clock input/output

· Trigger signal input/output

· Built in GPSDO

· FPGA GPIO interface

· USB 3.0 Host/Device Interface

· Type C USB port serial console, JTAG)

Current WiFi6 supports 160MHz bandwidth, WiFi7 up to 320MHz, while 5G mmWave and NTN reach 400MHz. YunSDR Y750Neo meets existing high-bandwidth demands and supports future 6G mmWave and broadband satellite communications. With 8GHz full-band coverage, it enables comprehensive spectrum analysis and RF recording/playback, replacing high-end instruments or multiple devices.
