Y720

YunSDR Y720

Frequency coverage: 1MHz – 7.125GHz ；2-channel real-time transceiver bandwidth: 800 MHz ；100G high-speed data interface, standard PCIe 3.0 card, abundant FPGA logic resources ；Out-of-box toolkit for RF acquisition, recording and playback ；Rich cross-platform APIs supporting MATLAB, Python, C#, C/C++ ；Integrated GNU Radio environment, compatible with open-source 4G/5G protocol stacks

document

800MHz Ultra-wideband 2×2

MIMO High-performance SDR

In stock:

contact

＞1, ready to ship in 2 workdays

ꁆ ꁇ

.

Home ꄲ Products ꄲ Y720

Overview
Product Information
Documentations
Related Products

Overview

Applications

· Wireless access

· Test and measurement

· Early warning/radar

· Cable TV access

· Other high-performance RF applications

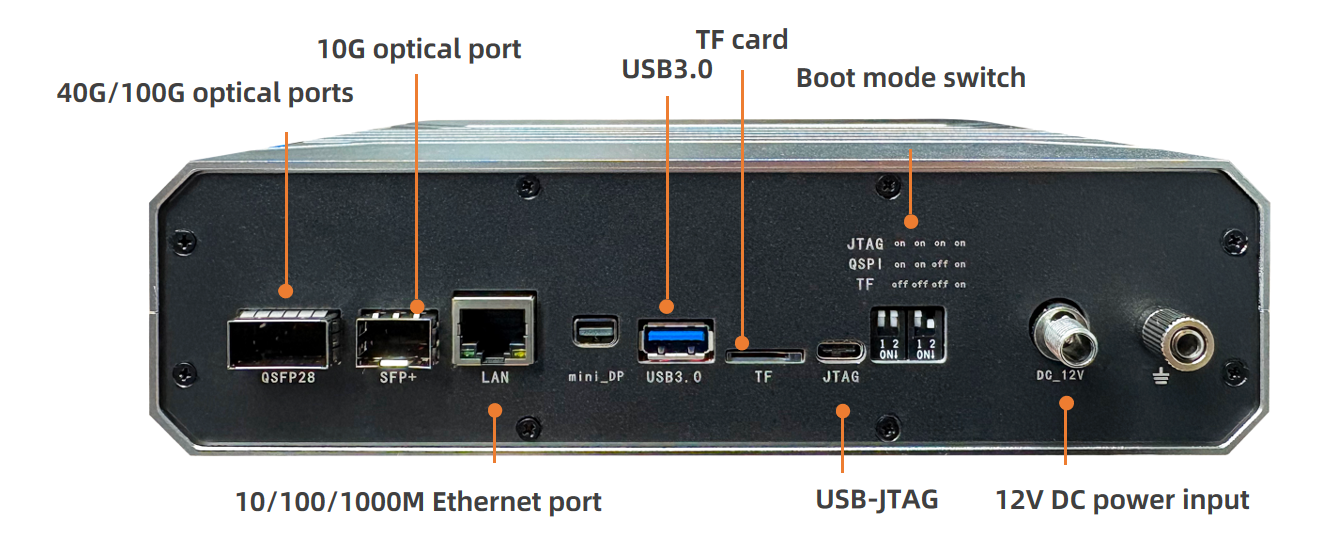

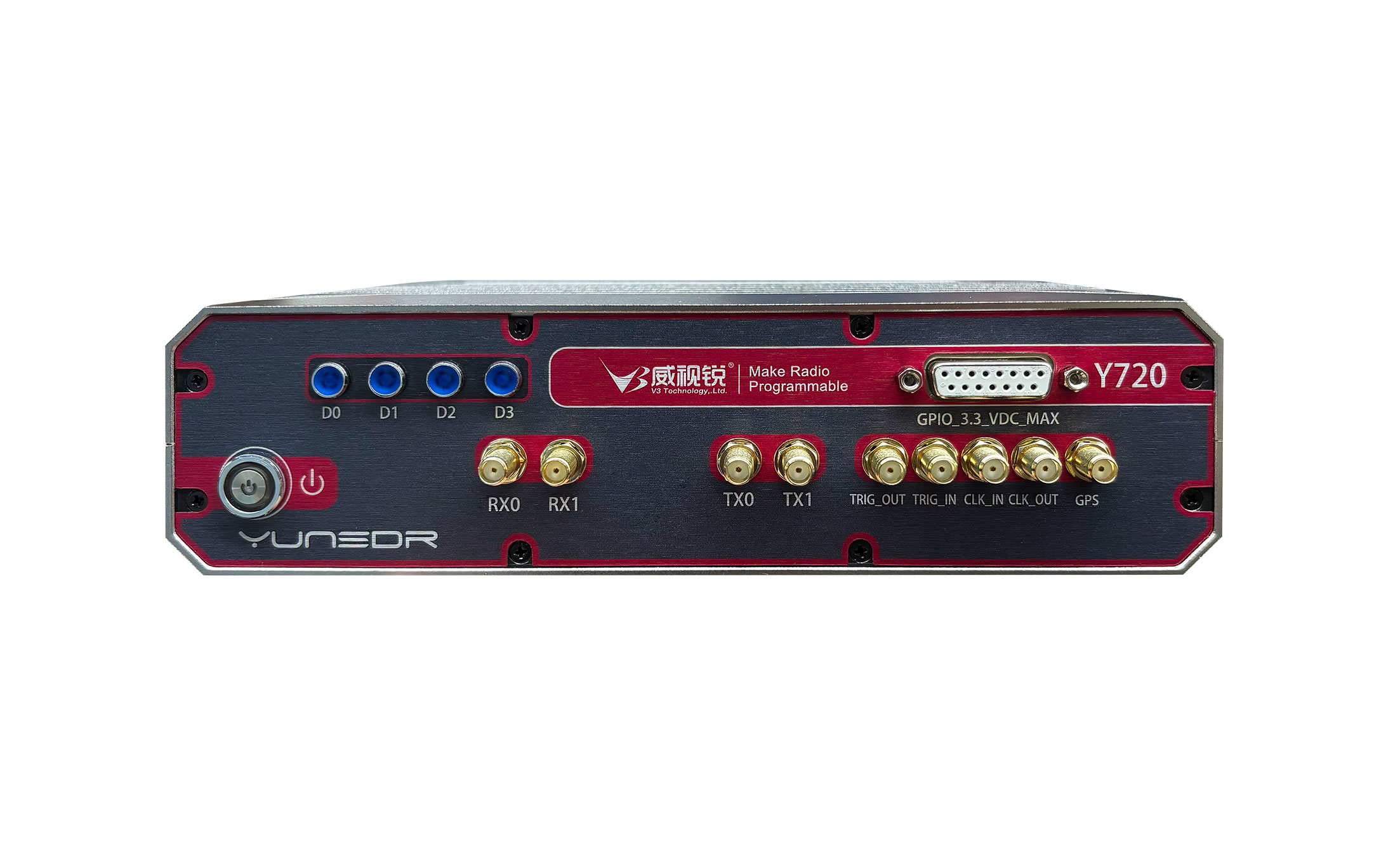

YunSDR Y720 is an ultra-wideband high-performance SDR platform built on the Zynq UltraScale+ RFSoC DFE, designed for extreme bandwidth and high sampling rates.It features a 14-bit 5GSPS ADC and 14-bit 9.85GSPS DAC, supporting 2-channel 800MHz real-time bandwidth.The RF front-end covers 1MHz to 7.125GHz natively, extendable to FR2/FR3 with up-converters/down-converters.Equipped with a 100G optical interface, it enables real-time host communication via a PCIe 3.0 x16 programmable FPGA card.Standard interfaces include USB-JTAG, Gigabit Ethernet, TF card, and USB 3.0, with configurable boot modes and 12V DC power input.

Product Description

Main features and interfaces

· High performance, high channel density, high integration

· Host mode (100G-to-PCIe streaming) development

· Frequency range: 1 MHz – 7.125 GHz (extendable to mmWave)

· 2-channel 800 MHz mode

· 2Tx, 2Rx

· Xilinx Zynq UltraScale+ ZU67DR RFSoC DFE

· 14-bit ADC, 14-bit DACQuad-core ARM Cortex-A53 up to 1.2 GHz

· Quad-core ARM Cortex-R5F MPCore up to 500 MHz

· QSFP28 optical port (supports 40G/100G Aurora & custom protocols)

· SFP+ optical port (supports 1G/10G Ethernet)

· PCIe Gen3 x16 acceleration card with Xilinx Kintex-UltraScale+ KU15P FPGA and dual QSFP28 ports

· Gigabit Ethernet RJ45

· Reference clock I/O

· Trigger signal I/O

· Built-in GPS module

· FPGA GPIO

· USB 3.0 host/device

· Type-C USB (UART console, JTAG)

The out-of-the-box software supports self-test, spectrum analysis, recording and playback, enabling engineers to quickly troubleshoot wireless issues.Drivers are compatible with GNU Radio and support FPGA low-level development, allowing rapid prototyping and reliable deployment of SDR applications including 5G base stations, signal intelligence and spectrum monitoring.
