RFSoM
The RFSoM module for Single-Chip Adaptable Radio Platform development, combines AMD Zynq™ UltraScale+™ RFSoC-series XCZU47DR device with fast DDR4 SDRAM, QSPI Flash, Meet the needs of large-scale MIMO radio, 5G baseband, fixed wireless access, cable TV access, testing and measurement, satellite communication, phased array radar/digital array radar, and other high-performance RF applications.
SoM with AMD Zynq™ US+ RFSoC XCZU47DR
In stock:
＞1, ready to ship in 2 workdays
Overview
Applications
· 5G FR1/FR2 RF and baseband
· Radar system
· Software radio
· Phased array system
· Spectrum monitoring
· Medical system

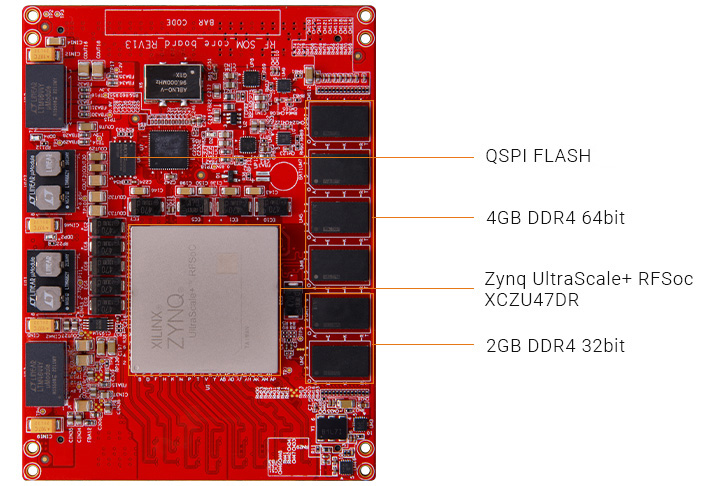

The RFSoM System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ RFSoC-series XCZU47DR device with fast DDR4 SDRAM,dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. Integrate hardware and software to help you provide a prototype of a high-performance wireless receiver system and perform air signal acquisition and analysis
Product Description
Key Features
· AMD/Xilinx Zynq™ Ultrascale+™ RFSoC:
· ARM® quad-core Cortex™-A53 up to 1.333GHz
· ARM® dual-core Cortex™-R5F up to 533MHz
· 16nm FinFET+ FPGA fabric
· Digital RF-ADC, RF-DAC

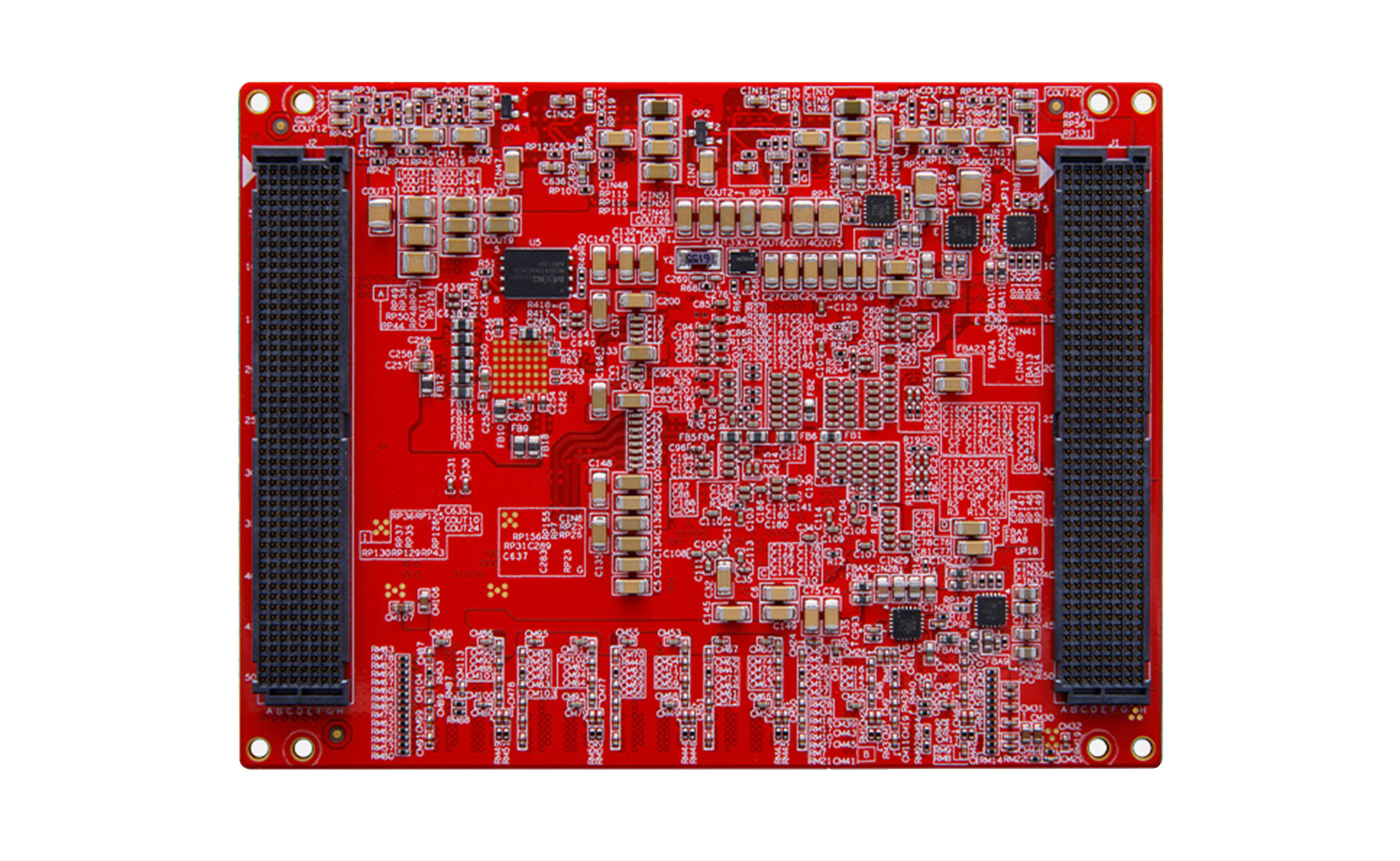

· Pluggable module with 2 x Samtec board-to-board connectors
· 4 GByte (64-bit) DDR4 SDRAM on PS
· 2 GByte (32-bit) DDR4 SDRAM on PL
· 128MB QSPI Flash
· Gigabit transceivers
· 8 x PL GTY, up to 28.21 Gbps
· 4 x PS-GTR, up to 6 Gbps
· 8 x 14bit ADC, up to 5GSPS
· 8 x 14bit DAC, up to 9.85GSPS
· Work temperature range of -40°C to +85°C
· 5V single supply
· Dimensions: 115 x 85 mm form factor
Product Information
-
Module Features

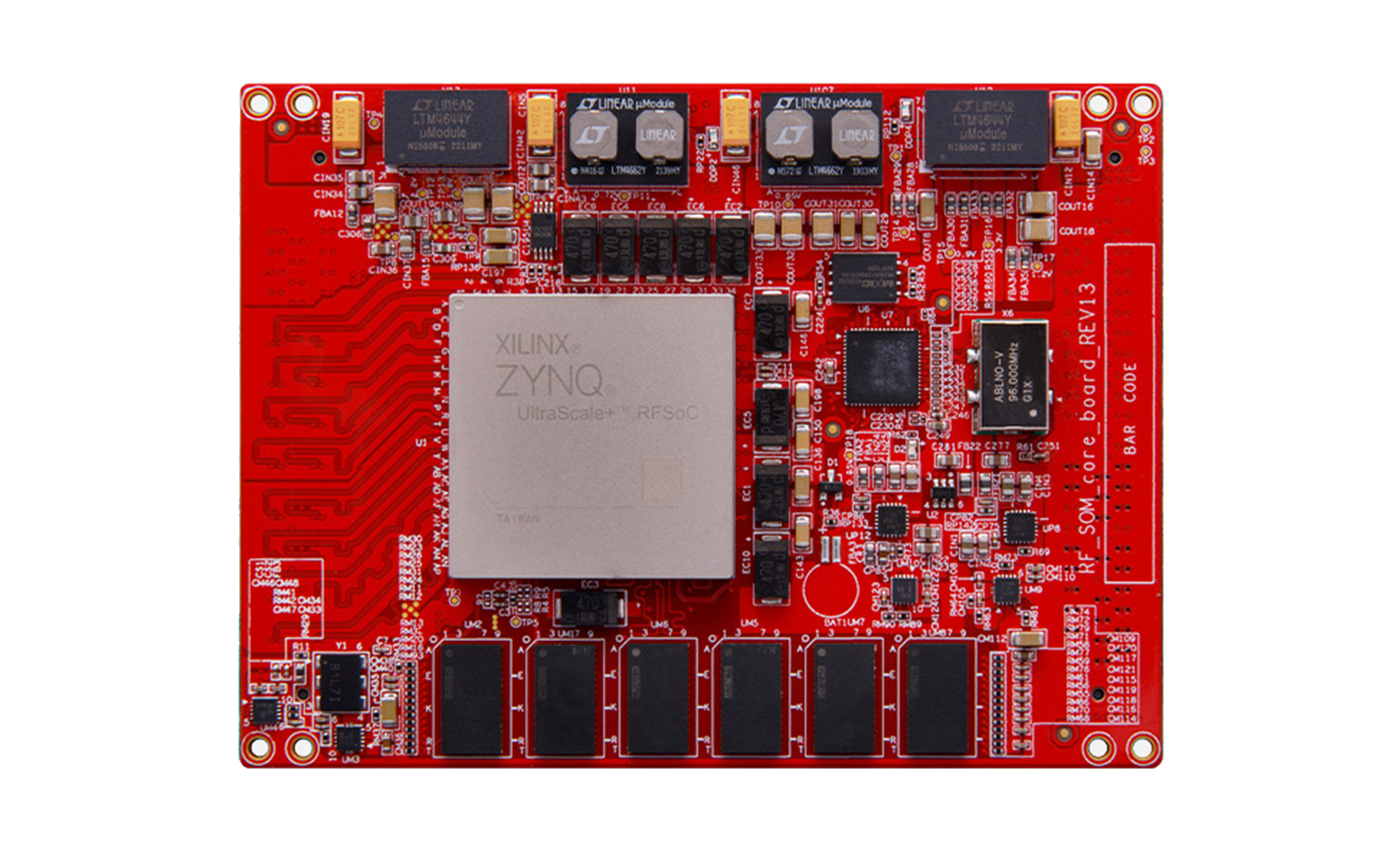

Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR-2FFVE1156I

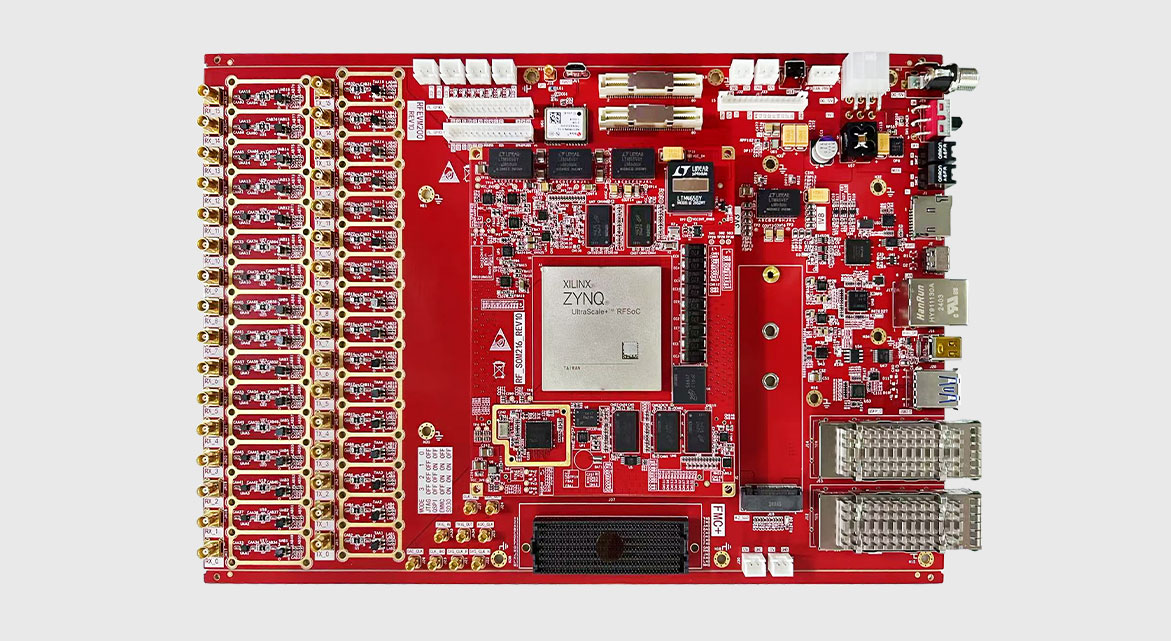

* We have Zynq™ UltraScale+™ RFSoC development boards RFEVM that uses this Zynq™ UltraScale+™ RFSoC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
-
What's Inside the Box
V3 AMD Xilinx Zynq™ UltraScale+™ RFSoC XCZU49DR System-on-Module/SoM
Product Selection Matrix
Product Matrix
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
