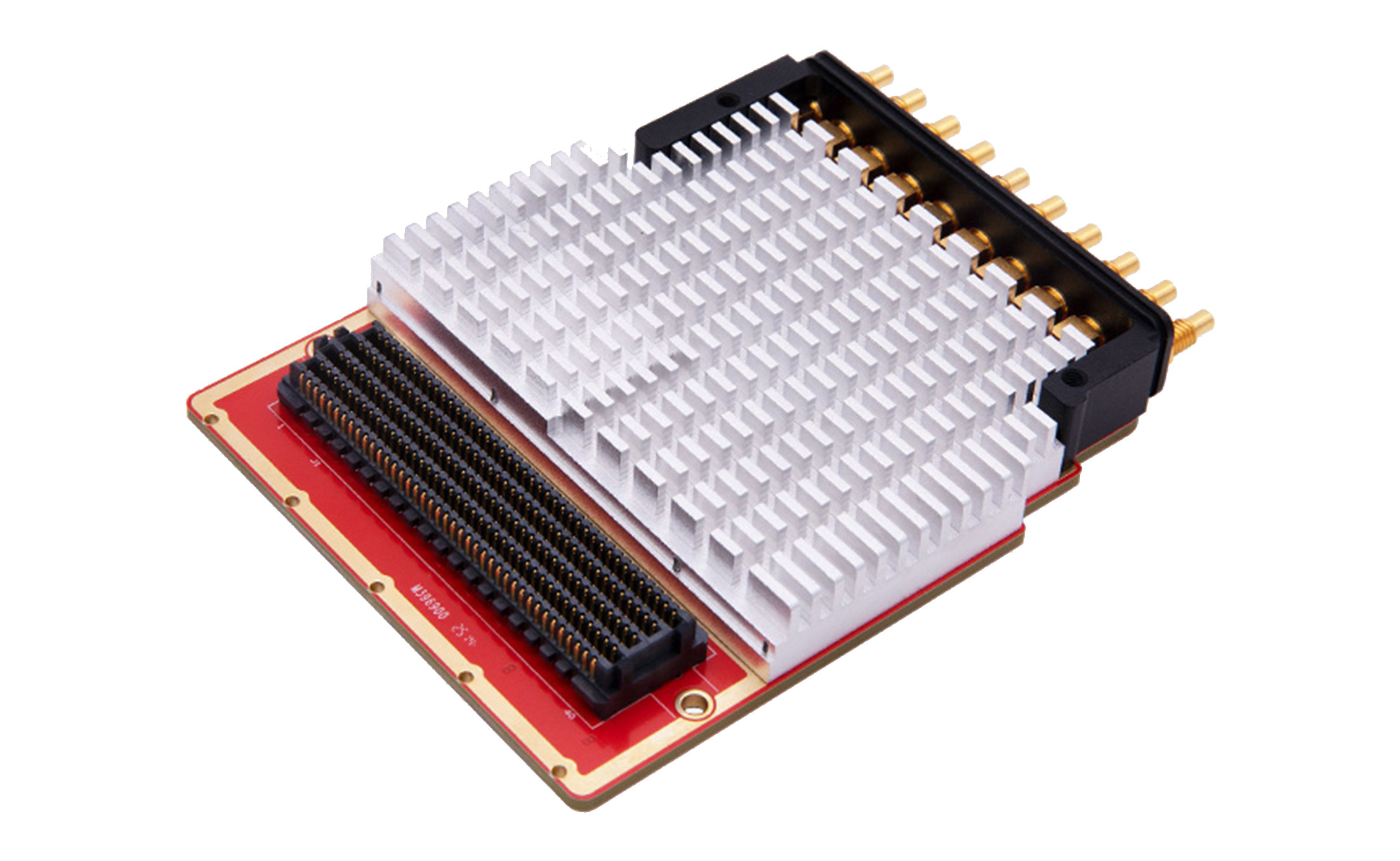

The RFMC9600 is a high-performance, radio frequency FMC card based on the ADRV9025A transceiver, covering 75 MHz to 6 GHz with 4Tx/4Rx channels, offering up to 450 MHz TX and 200 MHz RX bandwidth for applications in 5G, MIMO, radar, and communications.

document

RFMC9600 ADRV9025A 200MH RF-ADC FMC HPC Card

In stock:

contact

＞9, ready to ship in 2 workdays

ꁆ ꁇ

.

Home ꄲ Products ꄲ RFMC9600

Overview
Product Information
Product Selection Matrix
Documentations
Related Products

Overview

Applications

· 3G/4G/5G TDD and FDD

· Massive multiple input, multiple output (MIMO)

· Macro and small cell base stations

· Phased array radar

· communications

· Portable test equipment

The RFMC9600 is a high-performance, radio frequency FMC card based on the ADRV9025A transceiver, covering 75 MHz to 6 GHz with 4Tx/4Rx channels, offering up to 450 MHz TX and 200 MHz RX bandwidth for applications in 5G, MIMO, radar, and communications.

Product Description

Main Features

· ADRV9025A

· 4 Transmitters

· 4 Receivers

· 2 Observers (each with 2 inputs)

· Observation Rx (ORx) Channels: 2 (each with 2 inputs, for monitoring/calibration)

· Center Frequency: 75MHz ~ 6GHz

· Supports TDD and FDD modes

· RF impedance matching: 50Ω

· Maximum RX bandwidth: 200MHz

· Maximum TX bandwidth: 200MHz

· Maximum TX synthesis bandwidth: 450MHz

· Maximum ORX observation channel bandwidth: 450MHz

· Supports internal or external reference clock

· Supports external local oscillator (LO1, LO2) input

· JESD204B/JESD204C digital interface

Main Features

· Voltage: 3.3V& 12V

· Duplexing Model: TDD&FDD

· Power Consumptions: <9W

Transmitter Performance - Tx

· 75MHz ~ 6GHz Frequency

· SSMC Interface

· Output Power: 5 dBm (@1.5GHz, CW)

· EVM: 0.56% (Typical for 5G NR @100MHz bandwidth)

· Gain Control Range: 32 dB

· Gain Step: 0.05 dB

· ACLR: <-64dB

· LO Suppression: -69dBm@2.5GHz

· Max DAC Sample Rate: 491.52 MS/s

Transmitter Performance - Tx

· 75MHz ~ 6GHz Frequency

· SSMC Interface

· Sensitivity: -90 dBm (@20MHz bandwidth)

· Noise Figure: < 11.9 dB (@2.6GHz)

· EVM: < 2%

· Gain Control Range: 30 dB

· Rx Alias Band Rejection: 80dB (Due to digital filters)

· Noise Figure: 11.9dB@2.6GHz

· ADC Wideband SFDR: 60dBc

· Max ADC Sample Rate: 245.76 MS/s

Product Information

Module Features

Module Architecture

Click on the image to view a larger image.

Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

V3 provides product user manuals for each product.
What's Inside the Box
