The RFMC6000 highly integrated RF module can cover the 70MHz~6GHz frequency band and integrates dual channel transceiver links. The maximum real-time bandwidth for sending is 56MHz, and the maximum receiving bandwidth is 56MHz. RFMC6000 is more suitable for application on general software defined radio platforms.

Order

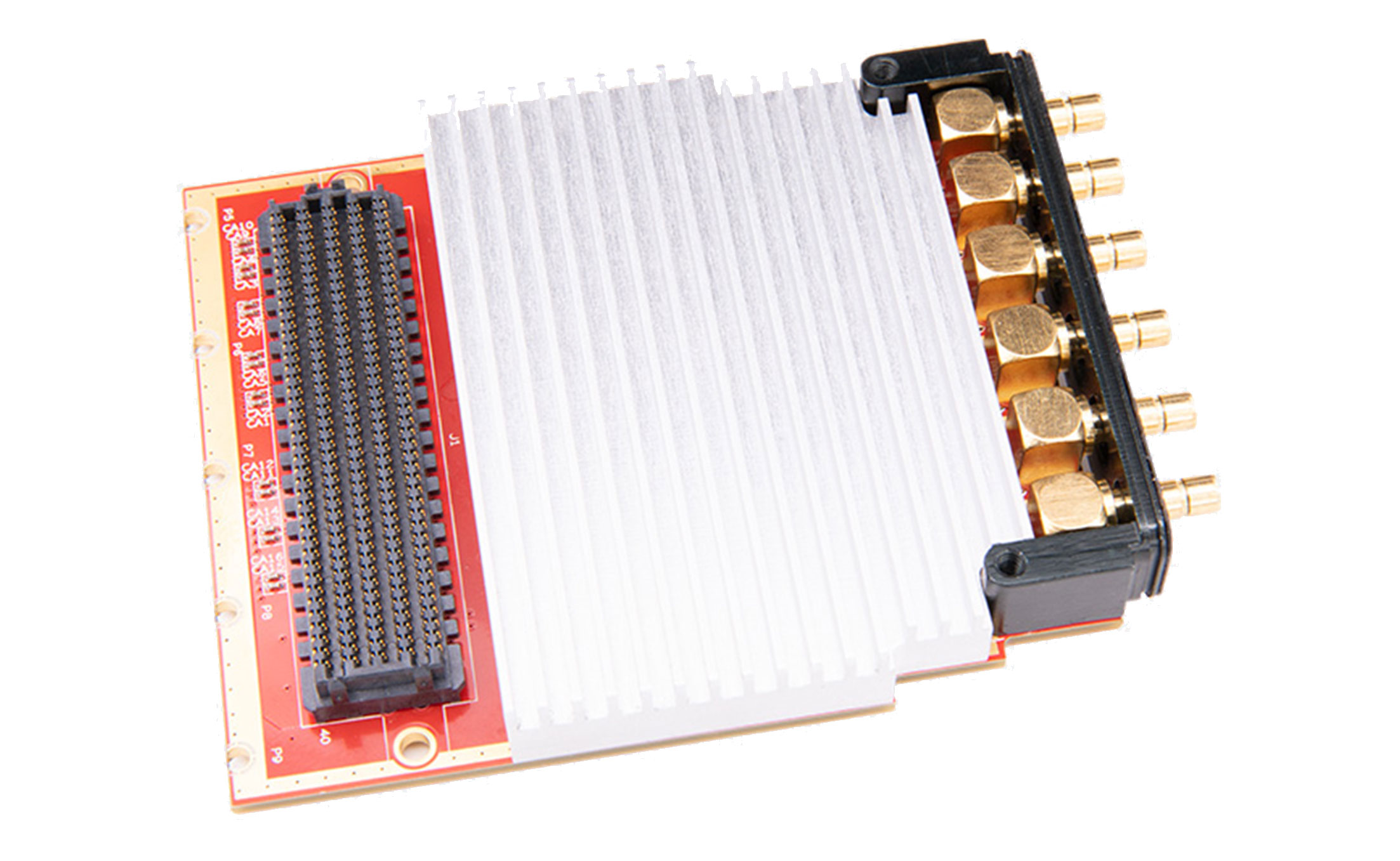

RFMC6000 12Bit ADC AD9361 Communication RF FMC LPC Card

In stock:

contact

9, ready to ship in 2 workdays

ꁆ ꁇ

Home ꄲ Products ꄲ RFMC6000

Overview
Product Information
Product Selection Matrix
Documentations
Related Products

Overview

Applications

· 3G/4G micro and macro base stations (BTS)

· Portable test equipment

· FDD and TDD active antenna systems

The RFMC6000 highly integrated RF module can cover the 70MHz~6GHz frequency band and integrates dual channel transceiver links. The maximum real-time bandwidth for sending is 56MHz, and the maximum receiving bandwidth is 56MHz. Compared with traditional RF front-end, AD9361 can achieve advantages such as low power consumption and small size, while ensuring sensitivity and dynamic range performance. RFMC6000 is more suitable for application on general software defined radio platforms.

Product Description

Key Features

· Chip Model: AD9361

· Overlay Band: 70MHz~6GHz

· 12bit ADC & 12bit DAC

· Supports half duplex, full duplex, TDD/FDD mode

· RF impedance matching 50 Ω

· RX maximum 56MHz real-time bandwidth

· TX maximum 56MHz real-time bandwidth

· Integrated power amplifier（ 14dB@2GHz ）, supporting a maximum transmission power of 10dBm output

· Supports internal or external reference clocks

· Parallel digital port

· Optional GPS module, providing reference clock and pulse synchronization signal through GPS

· FMC LPC connector

· Dimensions: 76.5 x 69 mm form factor

RFMC6000 has a standard FMC LPC interface that can be connected to the V3 FPGA carrier board for use.

Product Information

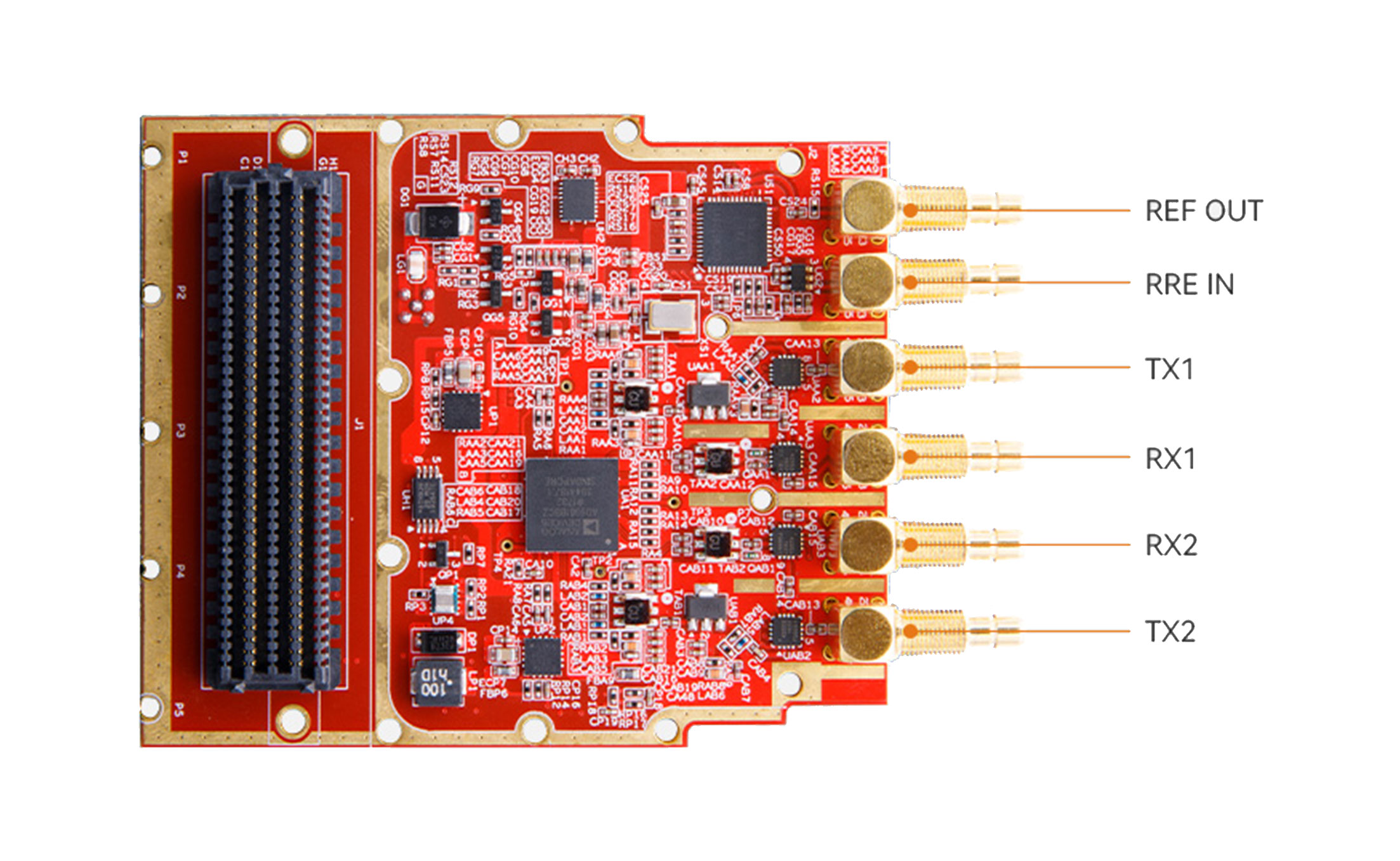

Module Features

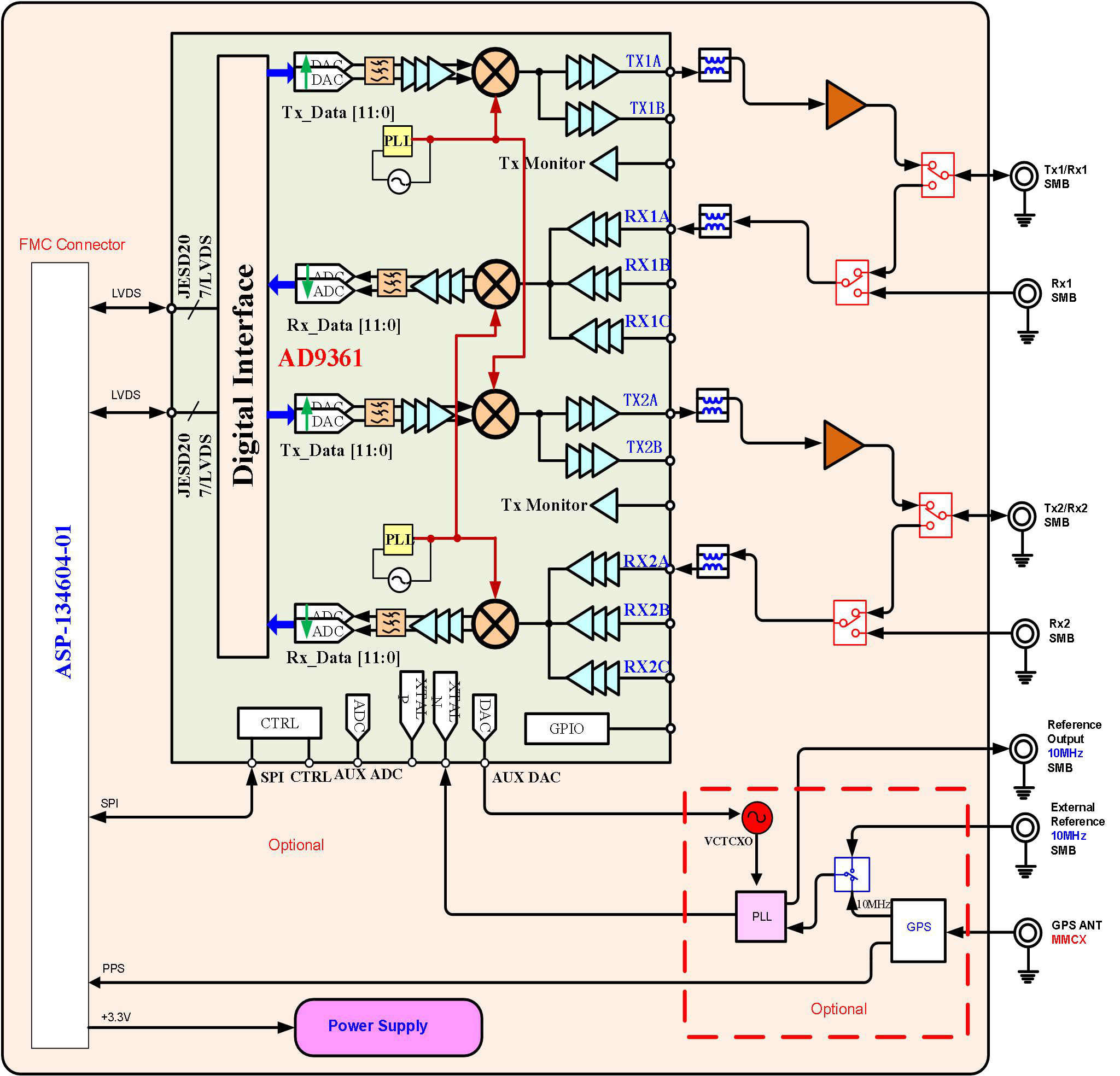

Module Architecture

Click on the image to view a larger image.

Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

V3 provides product user manuals for each product.
