The RFEVM4 development board, based on the AMD Zynq™ UltraScale+™ RFSoC DFE ZU67DR, is an ideal platform for adaptive radio development. It accelerates prototype evaluation for 5G New Radio (5G NR), radar, and a wide range of high-performance RF applications.

document

Dev Board & Kit with AMD Zynq™ US+ RFSoC XCZU67DR

In stock:

contact

＞1, ready to ship in 60 workdays

ꁆ ꁇ

.

Home ꄲ Products ꄲ RFEVM4

Overview
Product Information
Product Selection Matrix
Documentations
Related Products

Overview

Applications

· 5G FR1/FR2 Baseband & RF Systems

· Wideband Spectrum Monitoring & Analysis

· Phased-Array Radar / Digital Array Radar (DAR)

· Satellite Communications

· Multi-channel RF Signal Processing (for SDR, test equipment)

· Test & Measurement (T&M) Systems

The RFEVM4 development board is built around the AMD Xilinx Zynq UltraScale+ RFSoC ZU67DR. It provides 4 physical RF-ADC interfaces (2.95GSPS) and 2 physical RF-DAC interfaces (10GSPS), leveraging the chip's full 8-channel capability while offering optimized connectivity for target applications. It supports direct RF sampling below 7.125GHz, delivering a comprehensive solution for 5G communication, radar systems, and wired access testing from teaching labs to research verification.

Product Description

Key Features

· 5G FR1/FR2 Baseband & RF Systems

· 489K Logic Cells

· 8 x 14 bit 2.5GSPS RF-ADC

· 2 x 14 bit 5.9GSPS RF-DAC

· 8 x 14 bit 10GSPS RF-DAC

· ARM® quad-core Cortex™-A53 up to 1.333GHz

· ARM® dual-core Cortex™-R5F up to 533MHz

· 16nm FinFET+ FPGA fabric

· Hardened DFE (Digital Front-End) with integrated RF-ADC and RF-DAC

· 4 GB (64-bit) DDR4 SDRAM on PS

· 2 GB (32-bit) DDR4 SDRAM on PL

· 128 MB QSPI Flash

· Expansion: 2×400-pin high-speed connectors to the base board

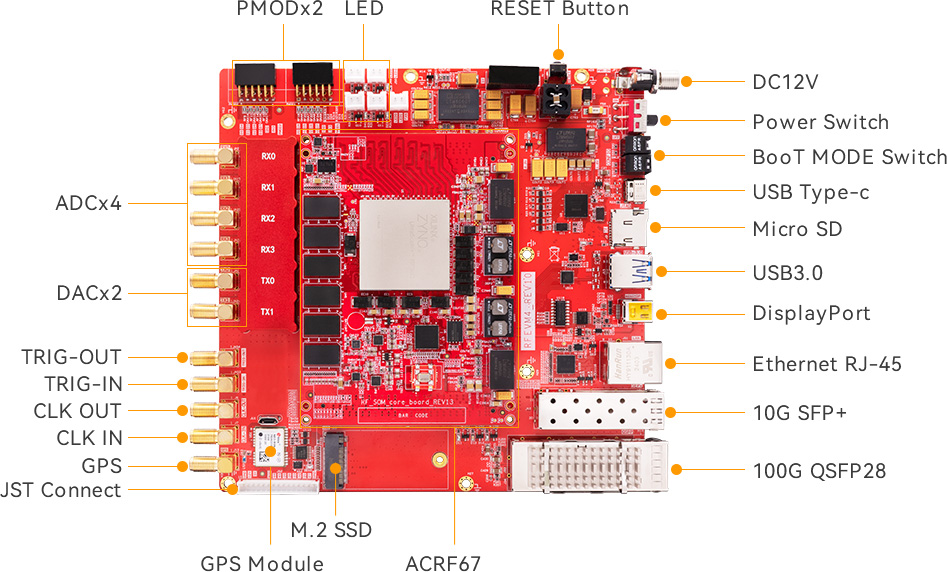

System-on-Module

Key Features

· 1 x 100G QSFP28

· 1 x 10G SFP+

· 1 x M.2 SSD (PCIe Gen2 x2)

· 1 x Gigabit Ethernet

· 4× RF-ADC Input Interfaces

· 2× RF-DAC Output Interfaces

· 1 x USB3.0

· 1 x DisplayPort

· 1 x Type-C (JTAG + UART)

· 1 x Micro SD Card Slot

· 2 x PMOD Expansion Interfaces

· 1 x High-precision GPS Module

· 4× User-programmable LEDs

· Power Switch & Reset Button

· 9-40V Wide Voltage DC Input

· Dimensions: 170mm x 170mm form factor

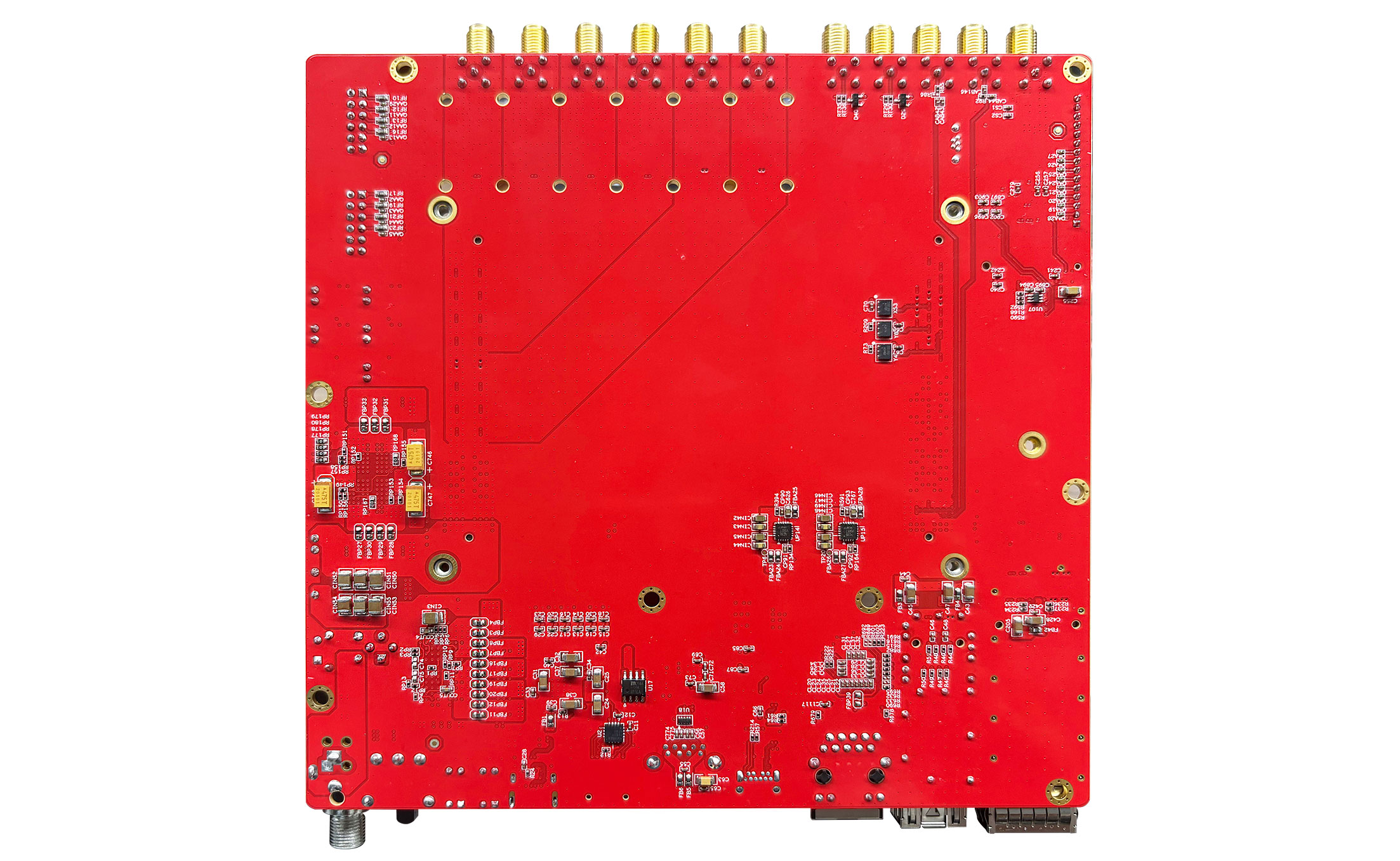

Base Board

Product Information

Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ RFSoC XCZU67DR-2FFVE1156I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.

The V3 development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ RFSoC based application.

* The RFEVM4 development board consists of a RFSoM and base board. If you want to purchase RFSoM separately.

Please check the Relevant Products at the bottom of the page and click to learn more details.

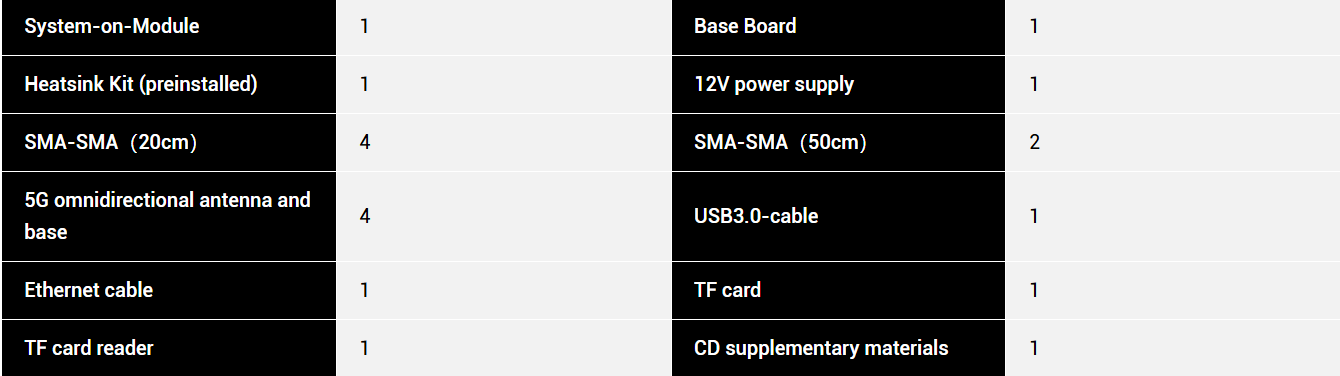

What's Inside the Box

V3 AMD Xilinx Zynq™ UltraScale+™ RFSoC ZU67DR development board and Some accessories

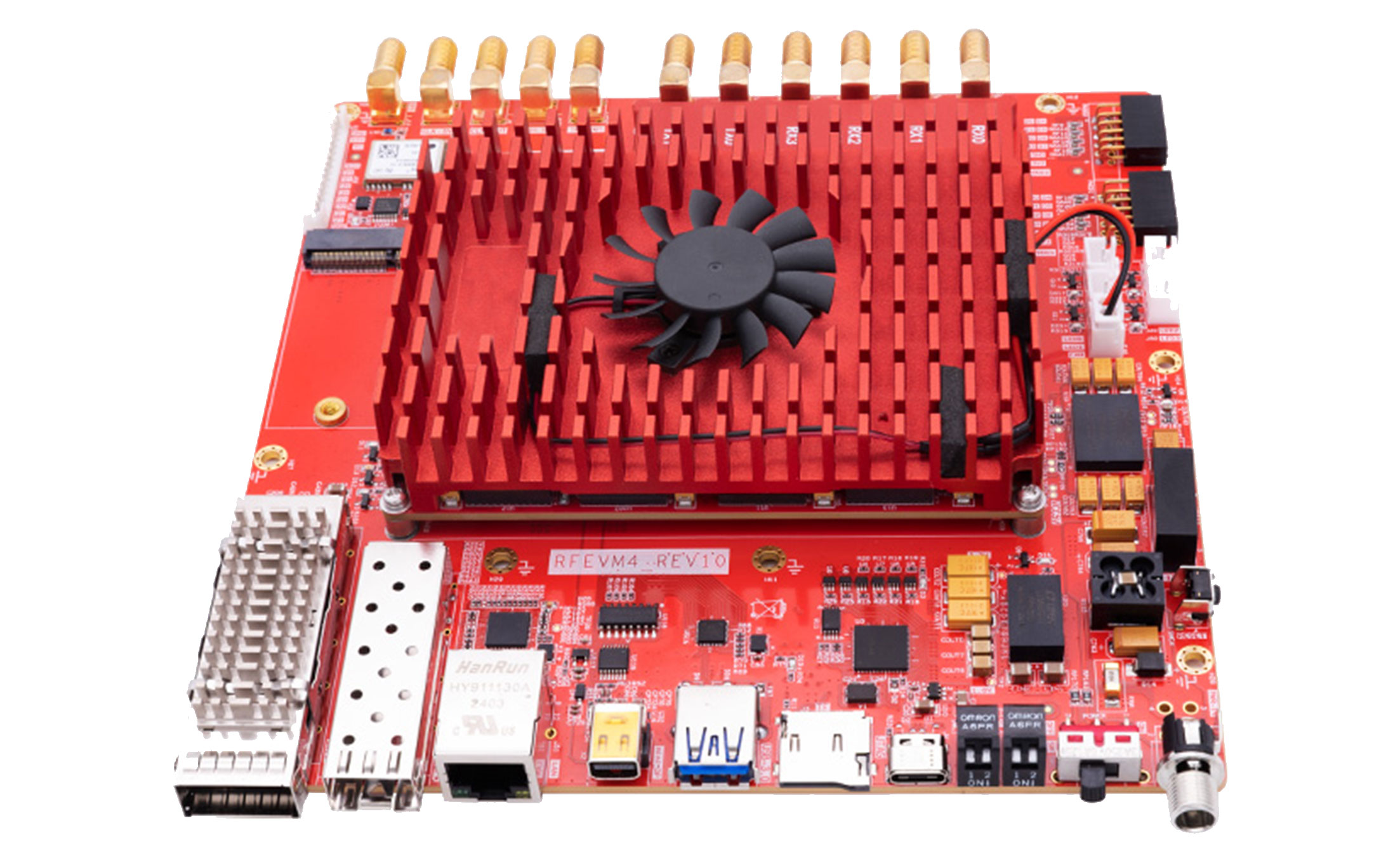

Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
