IQX8400

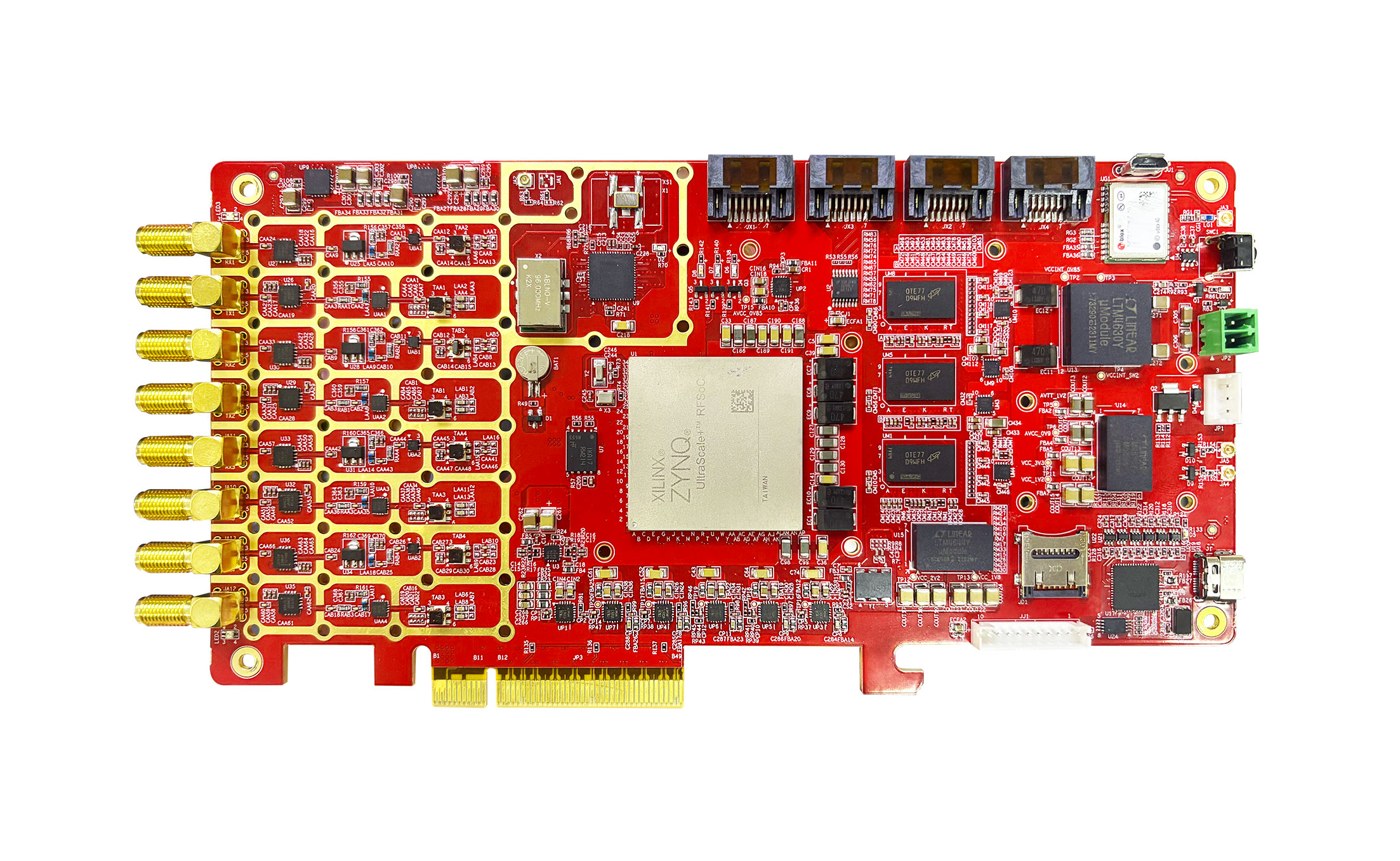

YunSDR IQX8400

4TX+4RX direct RF sampling architecture

RF coverage:10MHz~7.125GHz

RF bandwidth:from 5MHz~1000MHz

PCIe 8x standard connector Compatible bifurcation to x4x4 dual PCIe4.0 Card

Integrated GPS for precise time and frequency synchronization

Clock/PPS inputs and outputs for easy synchronisation

In stock:

＞1, ready to ship in 2 workdays

ꁆ ꁇ

Home ꄲ Products ꄲ IQX8400

Overview

Applications

· Wireless access

· Test and measurement

· Early warning/radar

· Cable TV access

· Other high-performance RF applications

4TX+4RX direct RF sampling architecture

RF coverage:10MHz~7.125GHz

RF bandwidth:from 5MHz~1000MHz

PCIe 8x standard connector

Compatible bifurcation to x4x4 dual PCIe4.0 Card

Integrated GPS for precise time and frequency synchronization

Clock/PPS inputs and outputs for easy synchronisation

Indicator characteristics

Product Information

Physical specifications of V3 IQX8400

Physical specifications

· RF Output Power: CW <15 dBm

· TX Gain: 14~90 dB

· SMA Sequence: RX1-TX1-RX2-TX2-RX3-TX3-RX4-TX4

· 1-in / 3-out SATA for inter-device timing sync

· Form Factor: Full-height full-length PCIe

· Power: Single 12V via PCIe

· ADC: up to 4.9152 GSPS; DAC: up to 9.8304 GSPS

· IQ Rate: 6.14 MSPS ~ 1228.8 MSPS

· Converter Resolution: 14-bit

· Frequency Accuracy: <0.5 ppm

· <3 GHz: 5G NR 256QAM, EVM <0.7% rms

· <5.5 GHz: 5G NR 256QAM, EVM <1% rms

· <7.125 GHz: 5G NR 256QAM, EVM <1.5% rms

· Dimension: 111.15 (std full-height PCIe) × 208 mm, single-slot thickness

· Power (12 V PCIe): 2 A (~24 W idle), max 4 A (~48 W) at full 4×4 TX gain

· Independent TDD/FDD & TRX switch configuration for dual RF units

· Max RF Input Power: 0 dBm

· RX Gain: 0~58 dB

· Weight: 0.48 kg
