V3 Technology-FX800

FX800

The FX800 series FPGA acceleration card is built on the Xilinx Virtex UltraScale+ architecture, serving as a high-end hardware acceleration platform for large-scale parallel computing, 5G physical layer processing and data center service optimization.Adopting a full-height 3/4-length dual-width PCIe form factor, the card integrates the XCVU13P core chip with advanced 16nm FinFET+ process, delivering substantial improvement in computing density.It features 3780K system logic cells and 12288 DSP computing units, providing powerful computing capability for extreme algorithm parallelism and high-load computation tasks.

document

In stock:

contact

＞1, ready to ship in 2 workdays

ꁆ ꁇ

.

Home ꄲ Products ꄲ FX800

Overview
Product Information
Documentations
Related Products

Overview

Applications

· Wireless access

· Test and measurement

· Early warning/radar

· Cable TV access

· Other high-performance RF applications

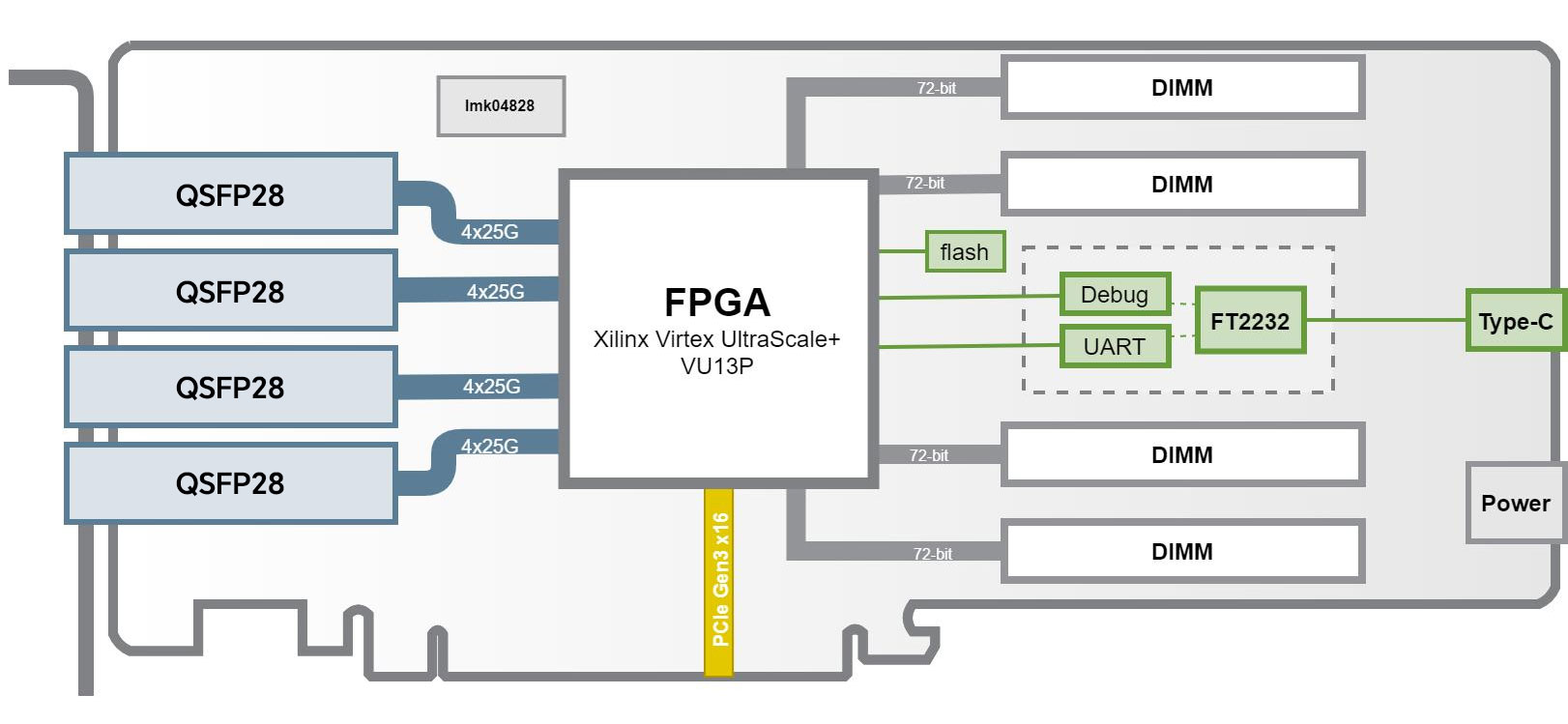

In terms of data bandwidth and interconnection performance, the FX800 is deeply customized for ultra-high throughput scenarios.It integrates four onboard 100G QSFP28 high-speed optical ports with 40G backward compatibility, providing up to 400Gbps aggregate throughput, and supports seamless connection with high-performance RF front-ends and backbone network core nodes.Equipped with PCIe Gen3.0 x16 interface, the card ensures high-speed data transmission with the host CPU, well adapting to 5G physical layer real-time signal processing, massive MIMO computation and complex protocol parsing.It adopts a 4-channel DDR4 RDIMM memory architecture with a maximum expandable capacity of 64GB and ECC function, offering robust buffering support for massive data acquisition and high-performance computing.

Indicator characteristics

The FX800 features a complete development ecosystem. It is shipped with standard PCIe host drivers and standardized API libraries, supporting C/C++ programming. Reference designs are also provided for optical interface and PCIe high-speed data communication.It enables seamless integration with SDR platforms, substantially lowering the development threshold and adaptation cost of heterogeneous collaborative systems. Meanwhile, it accelerates the entire R&D process from algorithm prototype verification to engineering deployment.

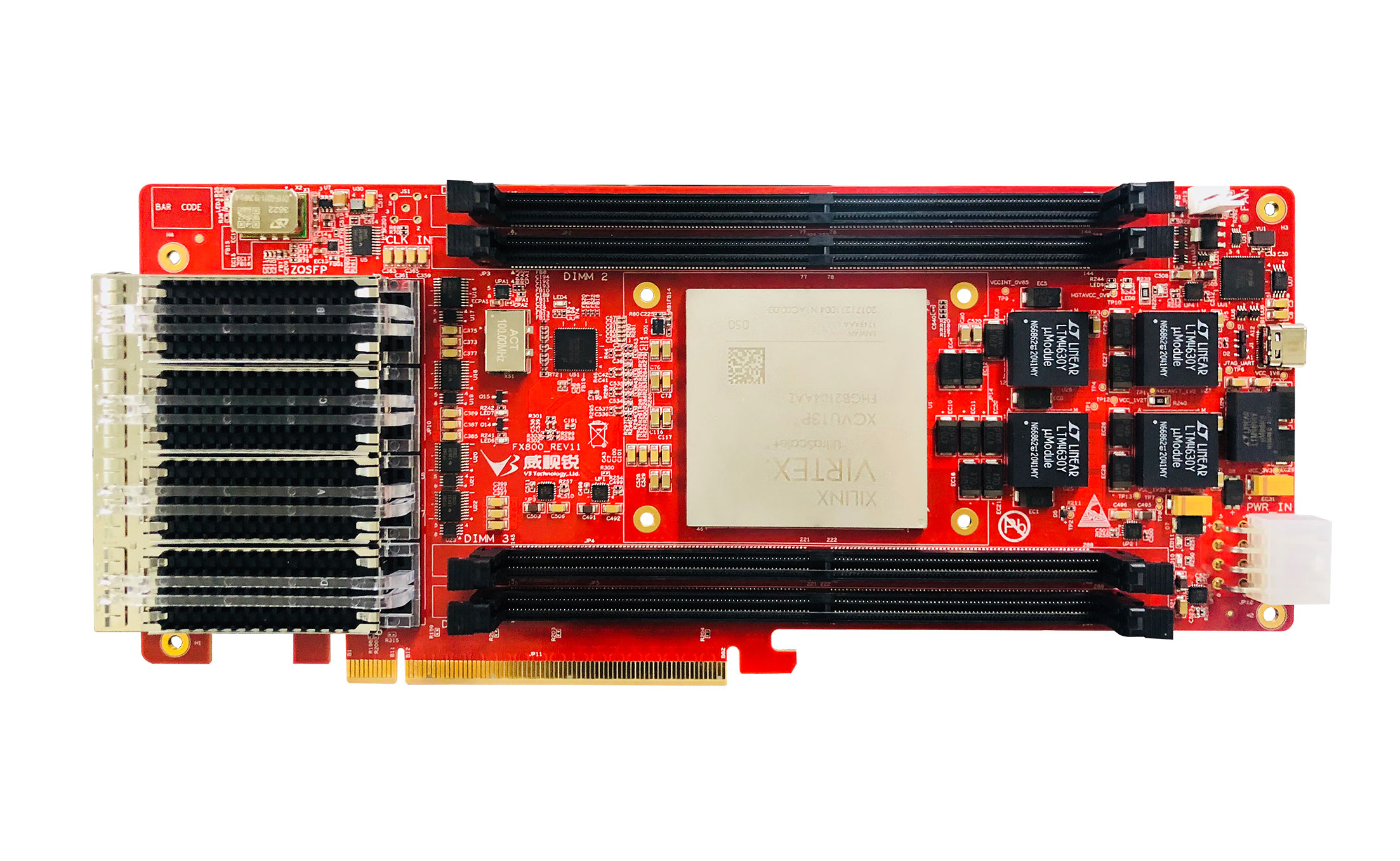

FX800 Acceleration Card

· Form Factor: Full-height 3/4-length, dual-width

· FPGA: · XiLinx Ultrascale+ 16nm VU13P · 3780K LE, 12288 DSP · 502.8Mb

· PCle: PCIe3.0x16

· Memory: 4*DDR4 DIMM 16GB 2400MHz 64-bit SDRAM ECC

· Network: 4×QSFP28 100GE, 40GE backward compatible

· Power Supply: · Passive cooling · Dual 12V power modes (PCIe slot power / external independent power); max power consumption 225W

· Indicators / Keys: · Status LED · Optical port status LED

· Configuration: · FPGA Configuration via JTAG · 1Gb QSPI Flash Memory

· Temperature Range：0℃-45℃
