FX200

The FX900 series FPGA acceleration card adopts the Xilinx Versal AI Core heterogeneous architecture, serving as a next-generation high-end heterogeneous computing platform tailored for 5G-Advanced, 6G pre-research, integrated sensing and communication (ISAC), and large-scale AI inference scenarios.Formulated as a full-height 3/4-length dual-width PCIe card, it integrates the VC1902 core chip built on 7nm process technology, achieving deep integration of logic resources, DSP engines and AI engines.Equipped with nearly 1968K system logic cells, 1968 DSP engines and 400 dedicated AI engines, it delivers industry-leading computing density to support complex future wireless communication protocols and high-throughput vector algorithm processing.

document

In stock:

contact

＞1, ready to ship in 2 workdays

ꁆ ꁇ

.

Home ꄲ Products ꄲ FX200

Overview
Product Information
Documentations
Related Products

Overview

Applications

· Wireless access

· Test and measurement

· Early warning/radar

· Cable TV access

· Other high-performance RF applications

In terms of data bandwidth and interconnection capability, the FX200 is specially enhanced for ultra-high throughput scenarios.It integrates two onboard 100G QSFP28 high-speed optical interfaces, supporting 100GE/40GE service data transmission.Equipped with PCIe Gen3.0 x16 host interface, the card delivers low-latency and high-bandwidth data transmission with the host, readily handling 5G physical layer baseband processing, 100G protocol parsing and high-performance algorithm acceleration.It adopts an 8GB dual-channel DDR4 memory architecture with a data rate up to 2666MT/s, providing sufficient buffer capacity for massive data streams.

Indicator characteristics

In terms of development ecosystem, the FX200 is equipped with comprehensive software support. It comes with standard PCIe host drivers and standardized API libraries, supporting C/C++ development, and provides reference designs for optical interface and PCIe high-speed data communication.The card enables seamless integration with SDR devices, effectively lowering the development barrier and adaptation cost of heterogeneous collaborative systems, and accelerating the full R&D cycle from algorithm prototype verification to engineering deployment.

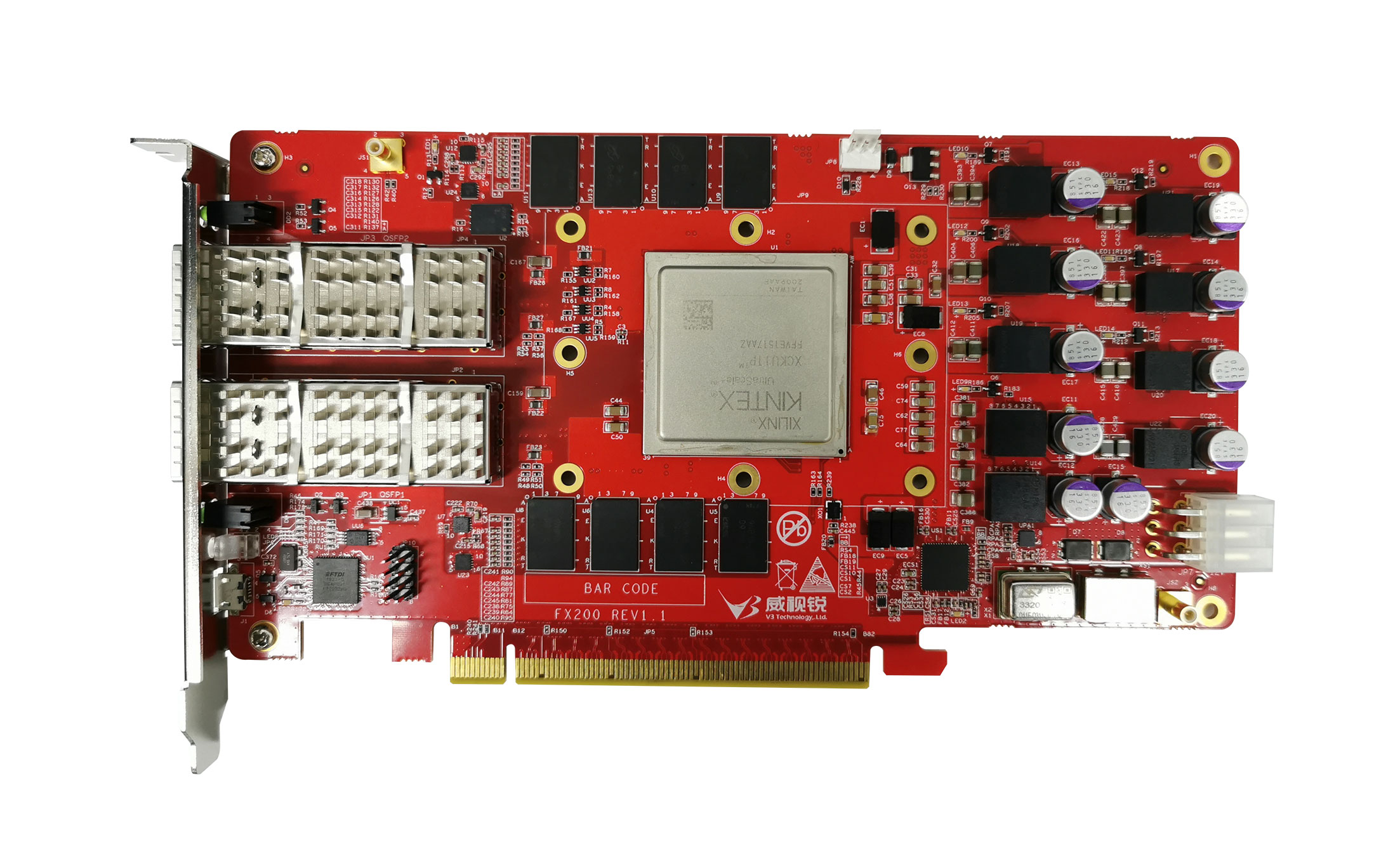

FX200 Acceleration Card

· Form Factor: Full-height half-length, single-width

· FPGA: · Xilinx Kintex UltraScale+ XCKU15P · 1143K LE，1968 DSP

· PCle: PCIe3.0x16

· Memory: 8GB DDR4 (2 channels, 4GB per channel), 128‑bit (2×64‑bit), up to 2666MT/s

· Network: 2×QSFP28 100GE, 40GE backward compatible

· Power Supply: · Active cooling · Dual 12V power supply modes (PCIe slot power / external independent power); max power consumption 60W

· Indicators / Keys: · Status LED · Optical port status LED

· Configuration: · FPGA Configuration via JTAG · 512Mb QSPI Flash Memory

· Temperature Range：0℃-45℃
